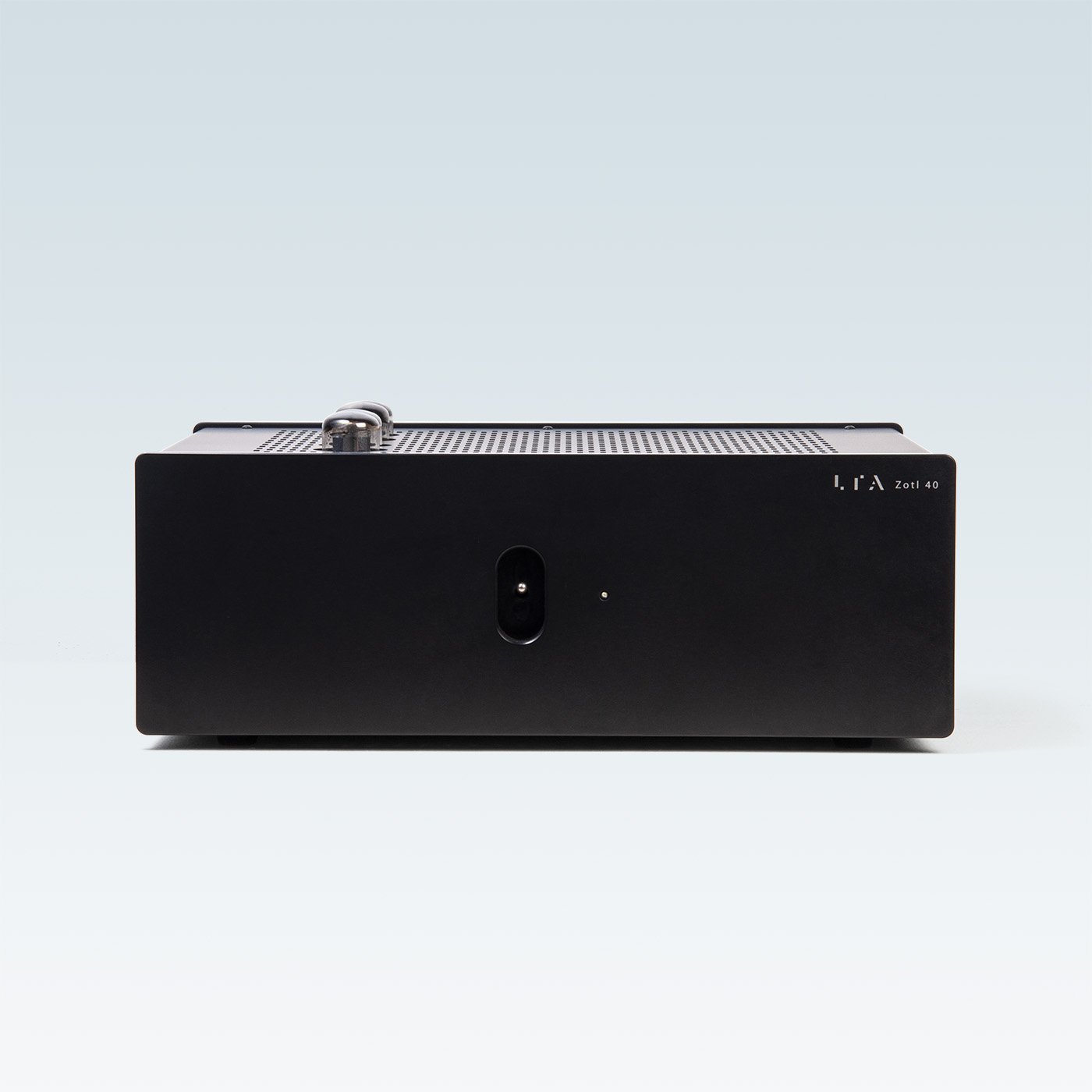

Image 1 of 3
Image 2 of 3
Image 3 of 3
“The ZOTL40 Reference manages to tip-toe the line between a classic tube sound, and a modern, solid-state A/B amplifier; and does so while being dead silent. Yep, you read that correctly. Silent.”
Specifications
Sensitivity: 1.2V provides full output
Output impedance 1.6 ohms
Input impedance: 50k
100V / 120V / 240V operation: Auto-switching
Hum and noise: 94dB below full output (measured between 8Hz-60kHz +0/-0.5dB)
Power output with 4-ohm load: up to 51W, 0.5% THD
Power output with 8-ohm load: up to 46W, 0.5% THD
Frequency response (8-ohm load): 8Hz to 50kHz, +0, -.5dB
Amplifier class: Push-pull Class AB
Net weight: 15 lbs
Finish: Aluminum case
Tube complement: two 12AX7s, two 12AU7s, &
four Mullard NOS EL-34s
Push-pull, Class AB output stage
No adjustments – tubes are auto-biased
More Information
The ZOTL40 Amp provides 40+ watts per channel outputs with accurate, uncolored sound and automatically protected circuitry. The hand-wound coils & impedance converters delivers 40 watts per channel with a frequency response flat from 8 hz to almost 50K hz. Also, the transformer-less design eliminates intermodulation distortion inherent in all transformer designs. The ZOTL40 Reference (Mk.III) sets itself apart from its peers, producing an unforgettably palpable and poignant listening experience, it also comes with a one (1) year warranty.
